To this point in the lab, you have created the code to build your staging fabric, test your staging fabric, and pushed all your infrastructure as code to GitLab for source control. To continue moving toward implementing a CI/CD pipeline, you will now create the file required by GitLab to configure the pipeline.

Step 1 - Naviate to GitLab CI/CD Variables

GitLab, like many CI/CD tools, has the ability to use variables in your pipeline. You will create the same environment variables you have been using throughout the lab to connect to your staging and prod fabrics, but defined through GitLab's CI/CD variables. You will not commit your secrets.sh script to your GitLab repo to avoid exposing your credentials.

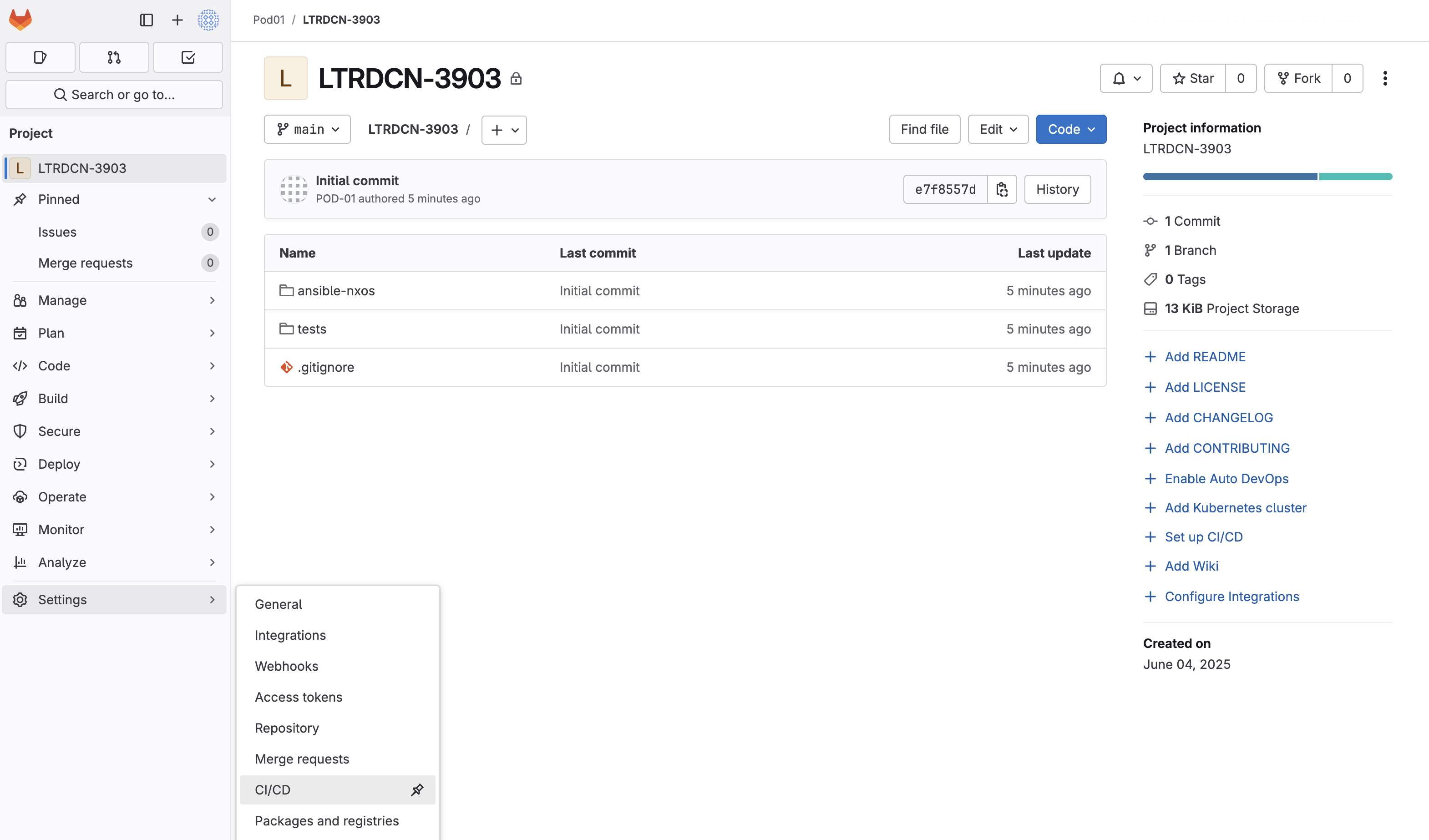

1. Hover over Settings
2. Select CI/CD in the pop-out

Step 2 - Add Variables

GitLab, like many CI/CD tools, has the ability to use variables in your pipeline. You will create the same environment variables you have been using throughout the lab to connect to your staging and prod fabrics, but defined through GitLab's CI/CD variables. You will not commit your secrets.sh script to your GitLab repo to avoid exposing your credentials.

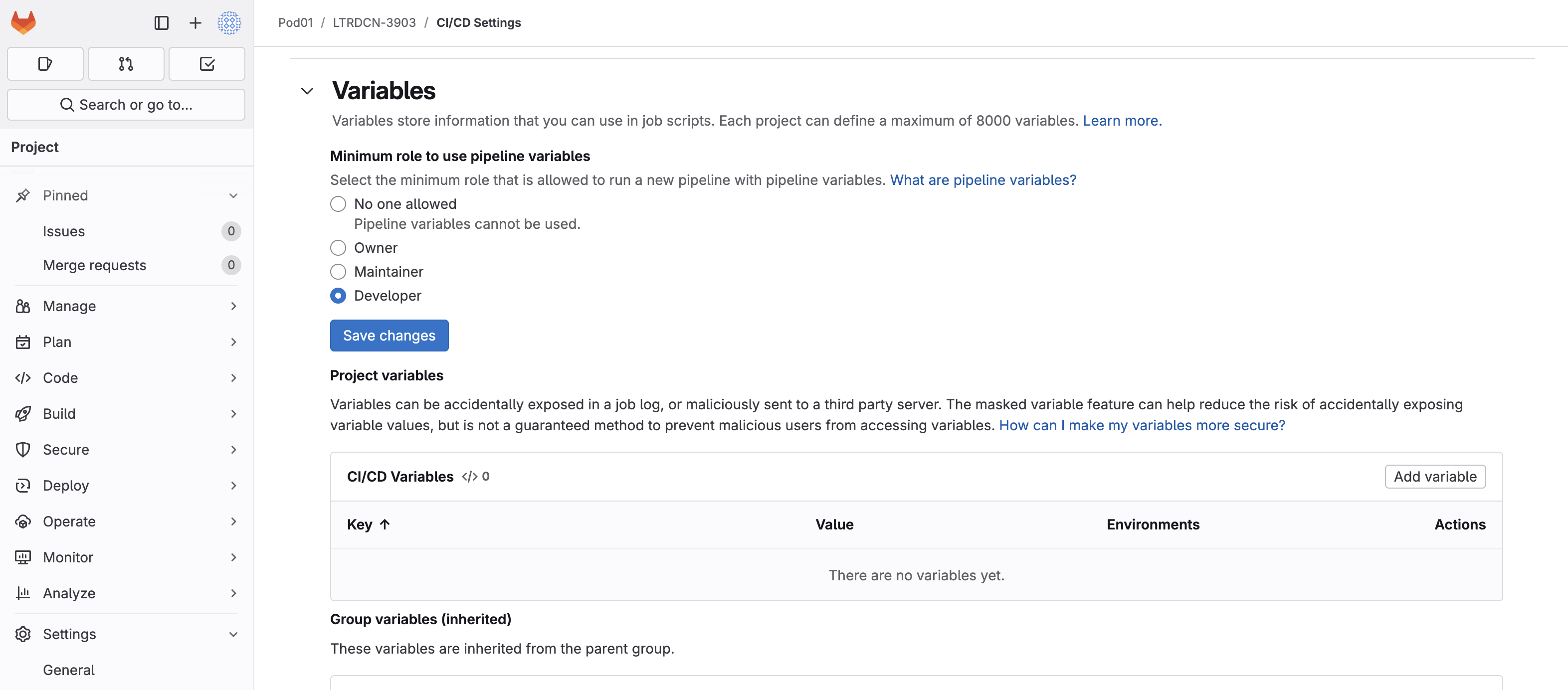

1. Locate the Variables section and expand
2. Click the Add variable button

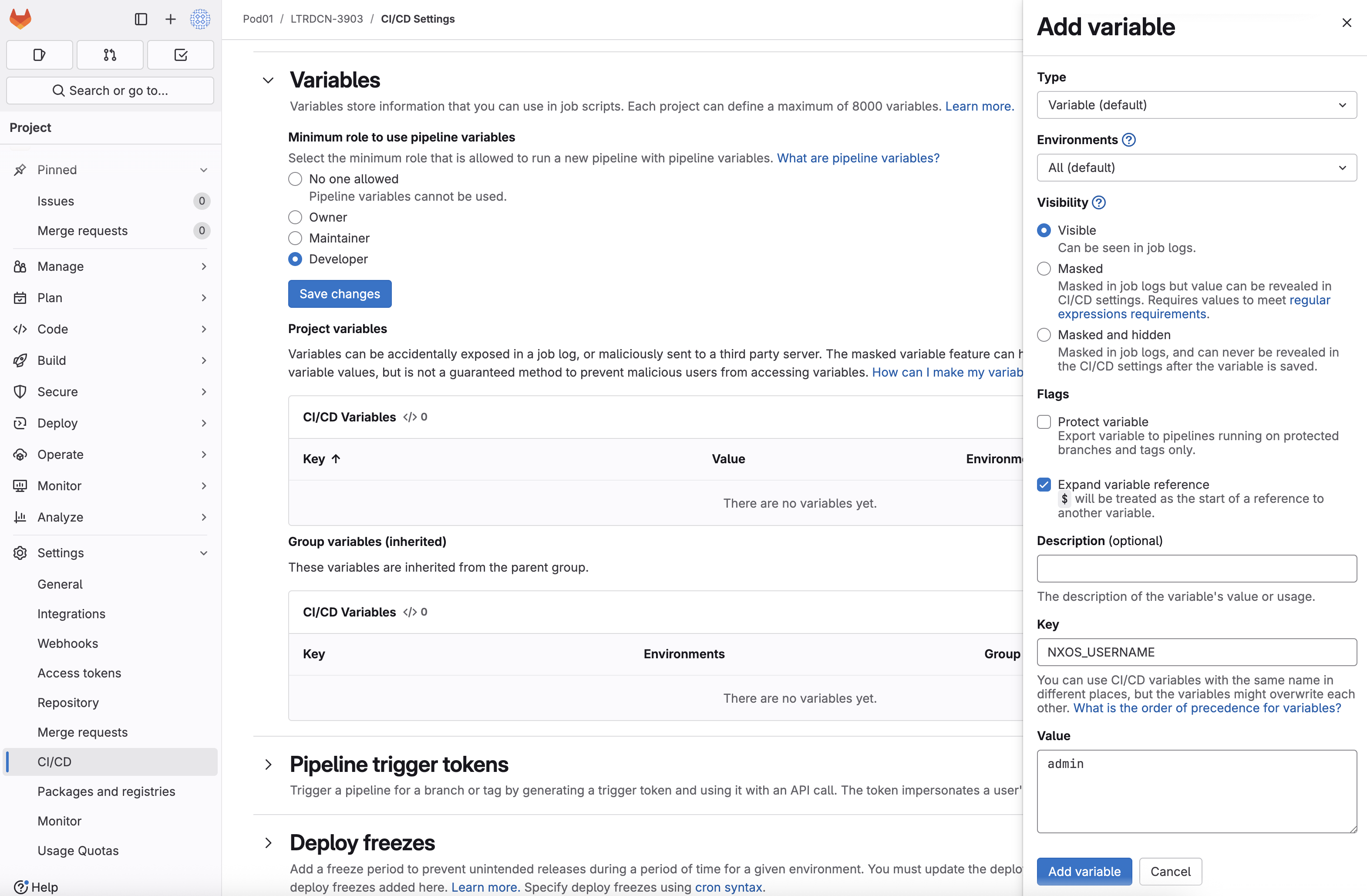

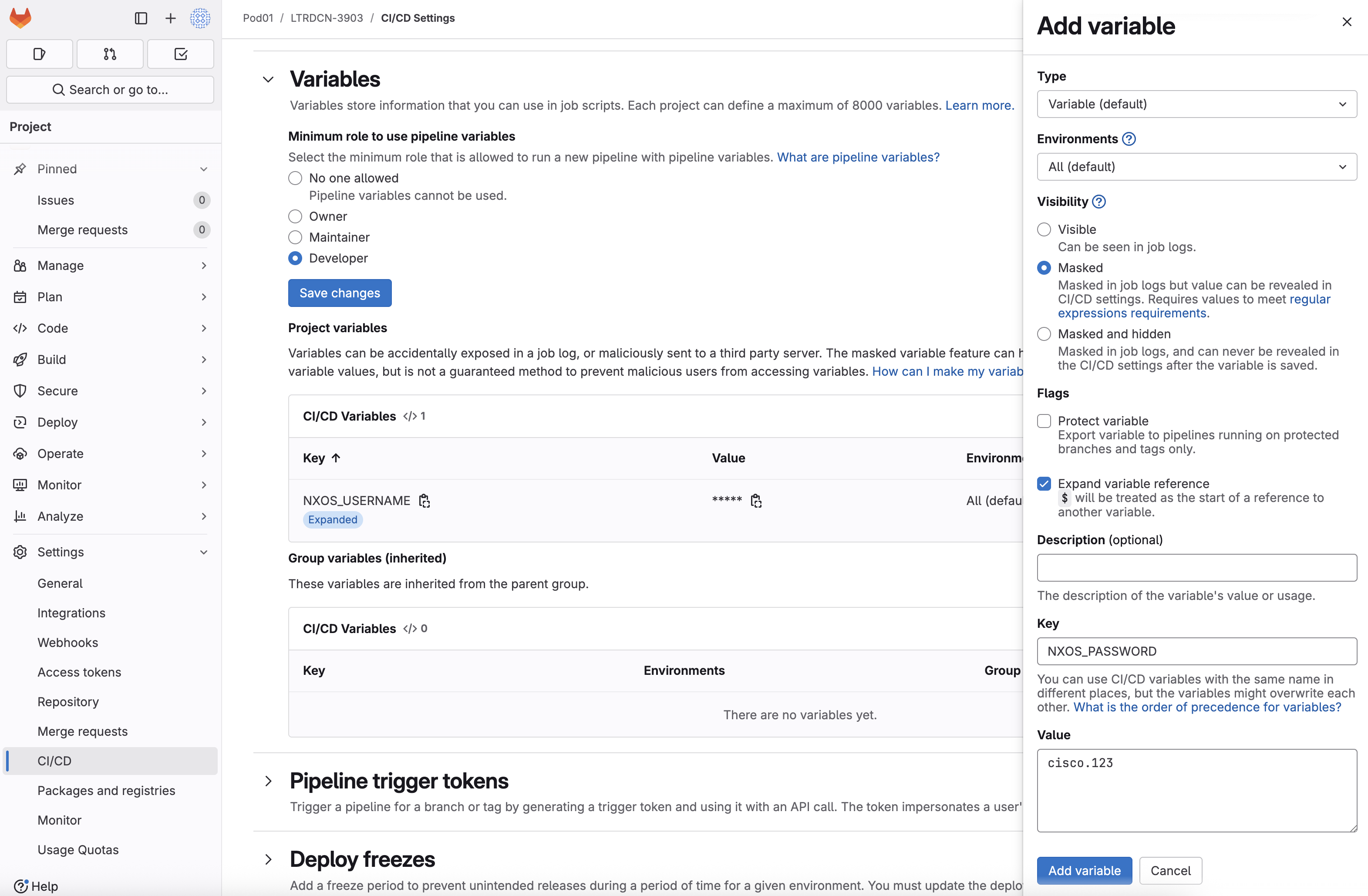

3. In the Add Variable pop-up, insert the follow information:
   • Visibility: Ensure Visible is selected
   • Flags: Uncheck Protect variable
   • Key: Insert NXOS_USERNAME
   • Value: Insert admin

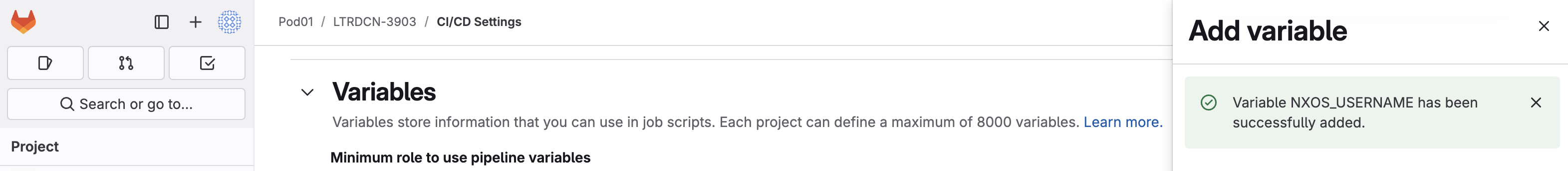

4. Click Add variable

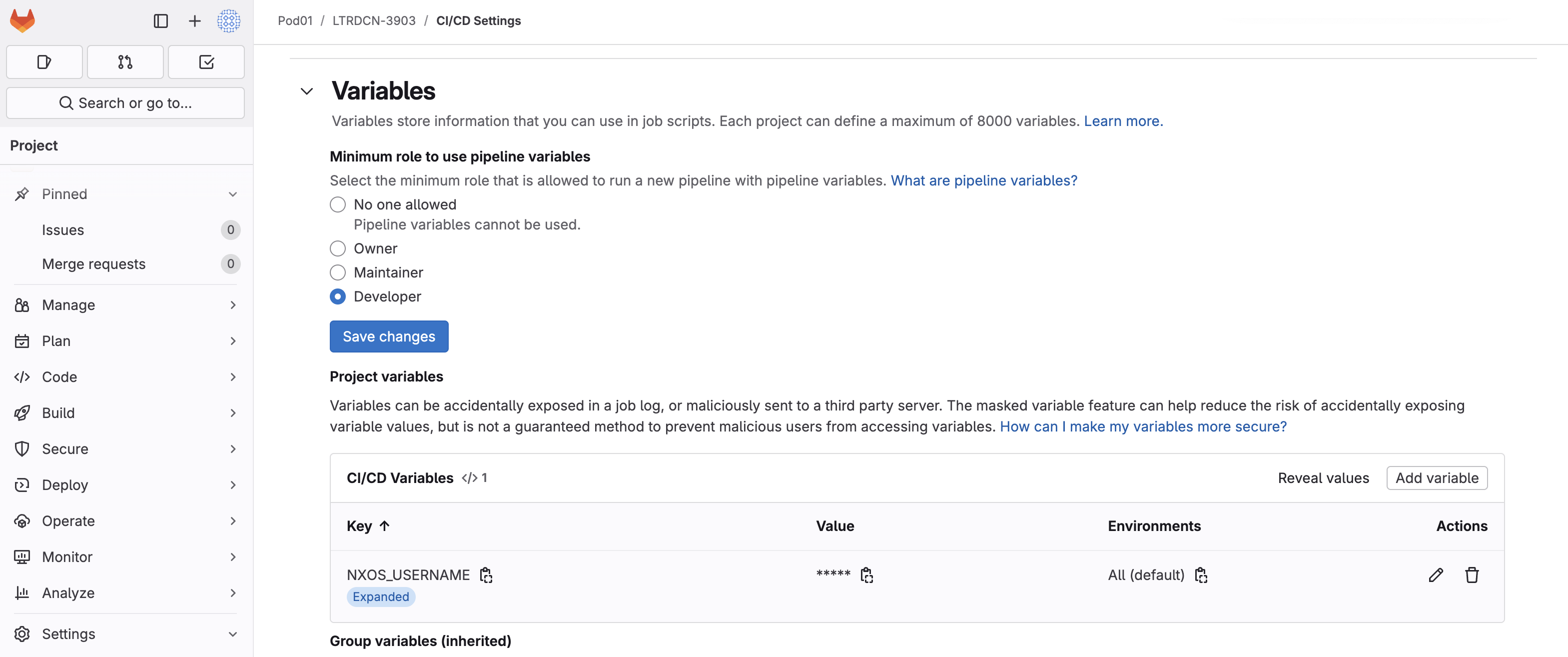

5. Close the newly created variable




6. Click the Add variable button




7. In the Add Variable pop-up, insert the follow information:
   • Visibility: Ensure Visible is selected
   • Flags: Uncheck Protect variable
   • Key: Insert NXOS_PASSWORD
   • Value: Insert cisco.123

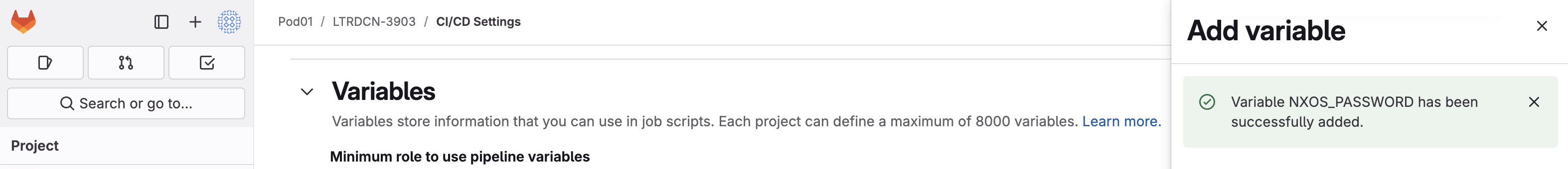

8. Click Add variable




9. Close the newly created variable

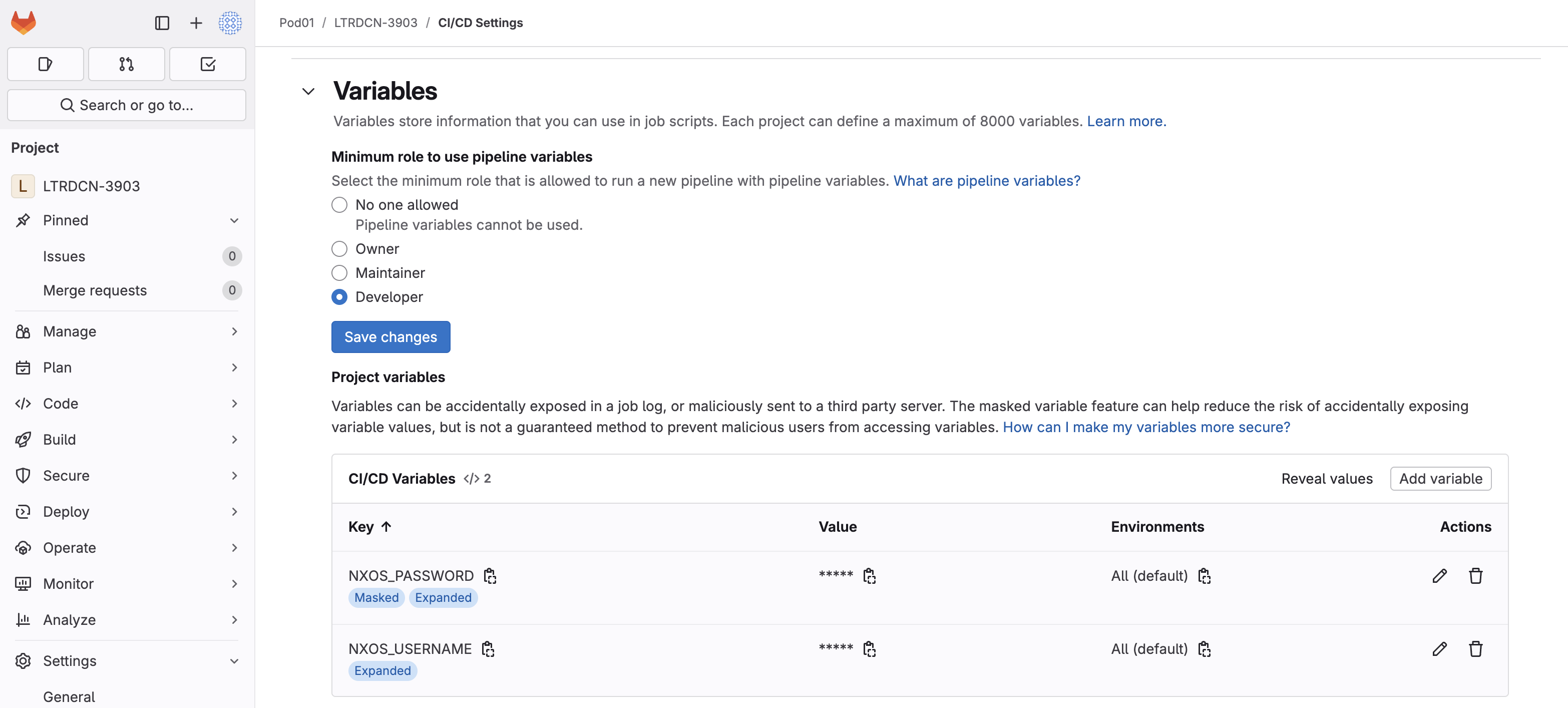

10. Review variables
11. Navigate back to repo

Step 3 - Create and Switch to a New Git Branch

To begin, return to your VSCode Terminal. You will create a new branch in Git to work from. Branching in Git is a strategy to work on your codebase without making changes in the main branch. Doing so de-risks errors and issues you could introduce into the main branch inadvertently. For the purposes of this lab, the main branch is the branch that the pipeline will use to configure and test your prod fabric. Given this, the main branch should never be used for development and execution against your staging fabric. The main branch is a safe branch. If the lab allowed more time, there are additional concepts such as branch protection rules that you can explore to further protect your main branch from any use except for prod use.

To create a new branch, you can use git checkout -b where the option -b is for the new branch name.

git checkout -b staging

  Switched to a new branch 'staging'

Step 4 - Create Requirements File

In your VSCode Terminal, create the requirements file that includes the packages you have worked with up until this point in the lab:

touch /home/pod14/workspace/nxapilab/requirements.txt
cat <<EOF > /home/pod14/workspace/nxapilab/requirements.txt

ansible==9.13.0
ansible-lint==24.10.0
pyats[full]==25.4
requests==2.32.2
EOF

Step 5 - Create a New YAML File in Visual Studio Code For GitLab CI File

In your VSCode Terminal, use the code keyword to open a YAML file called .gitlab-ci.yml.

GitLab looks for this particular hidden file in a repo to leverage its CI/CD pipeline feature.

touch /home/pod14/workspace/nxapilab/.gitlab-ci.yml
code-server -r /home/pod14/workspace/nxapilab/.gitlab-ci.yml

Step 6 - Populate GitLab CI YAML File

This hidden file defines the pipeline and the stages to run. Your pipeline for this lab will have three (3) stages defined: lint, deploy, and test.

• lint stage: The lint stage will be used to check that your infrastructure as code files are syntactically correct and valid for execution and runtime. For linting, you will leverage yamllint to check your repo for correct YAML formatting and ansible-playbook --syntax-check to validate the syntax and structure of your previously created playbooks.
• deploy stage: There are two deploy stages in the pipeline defined below. The first is for deploying to your staging fabric using the Ansible playbooks you previously developed. Again, this is the fabric you have been actively developing against thus far in the lab. The second is for deploying to your prod fabric using the same Ansible playbooks - this is what you will have the pipeline do for following a Devops model in the next section.
• test stage: This stage is defined identically as the deploy stage but for running the pyATS tests you developed previously in the lab. Since there were two different methods explored for using pyATS, AEtest and RobotFramework, there are two steps defined for this stage for both staging and prod.

As you populate and review the pipeline below, make note of the only and except keys. These dictate which stages are run against which branch or not run against a branch. As done in this lab, typically it is the main branch that is used with these keys. For example, when you want the pipeline to run against your staging setup, then you'll notice that except is used so that a particular step is not run on main. On the contrary there are steps only applicable for prod, thus the only key is used to specify main.

The last two pieces to this pipeline is the usage of the only key to also control when the pipeline is run. For example, you could have the pipeline run against staging every single time a commit is pushed to the repo. Depending on your devops process, that may be required, but for this lab, only will be used to control the pipeline running when a merge request is created. A merge request will be expanded on in the next section, but in short, this is the process of merging your code from another branch, such as your staging branch in this case, into main. The other piece is the script key that defines a list of the commands to execute to run your automation. These commands should look familiar to you as you have been doing these manually up to this point in the lab.

Copy and paste the GitLab CI file into your open .gitlab-ci.yml file in VSCode:


---
image:
  name: mtarking/ubuntu:22.04

variables:
  ANSIBLE_HOST_KEY_CHECKING: 'false'
  ANSIBLE_FORCE_COLOR: 'true'
  ANSIBLE_PERSISTENT_COMMAND_TIMEOUT: 1000
  ANSIBLE_PERSISTENT_CONNECT_TIMEOUT: 1000

stages:
  - lint
  - deploy
  - test



yamllint:
  except:
    - main
  only:
    - merge_requests
  stage: lint
  before_script:
    - python3 -m pip install -r requirements.txt
  script:
    - echo "Checking YAML files"
    - yamllint -d relaxed .

ansible_lint:
  except:
    - main
  only:
    - merge_requests
  stage: lint
  before_script:
    - python3 -m pip install -r requirements.txt
  script:
    - echo "Checking playbook"
    - ansible-playbook --syntax-check -i ansible-nxos/staging.yml ansible-nxos/vxlan.yml



deploy_to_staging:
  except:
    - main
  only:
    - merge_requests
  needs:
    - yamllint
    - ansible_lint
  stage: deploy
  before_script:
    - python3 -m pip install -r requirements.txt
  script:
    - echo "Deploy to staging fabric"
    - ansible-playbook -i ansible-nxos/staging.yml ansible-nxos/vxlan.yml

pyats_aetest_test_staging:
  except:
    - main
  only:
    - merge_requests
  needs:
    - deploy_to_staging
  stage: test
  before_script:
    - python3 -m pip install -r requirements.txt
  script:
    - echo "Test staging fabric"
    - pyats run job tests/pyats_easypy.py --testbed-file tests/staging-testbed.yaml --archive-dir=./tests/results --xunit=./tests/results --no-archive-subdir --no-mail
  artifacts:
    when: always
    paths:
      - tests/results/*.zip
      - tests/results/report.html
    reports:
      junit: tests/results/xunit.xml

pyats_robot_test_staging:
  except:
    - main
  only:
    - merge_requests
  needs:
    - deploy_to_staging
  stage: test
  before_script:
    - python3 -m pip install -r requirements.txt
  script:
    - echo "Test staging fabric"
    - pyats run robot tests/pyats.robot --testbed-file tests/staging-testbed.yaml --archive-dir=./tests/results --xunit=./tests/results --no-archive-subdir --no-mail
  artifacts:
    when: always
    paths:
      - tests/results/*.zip
      - tests/results/report.html
    reports:
      junit: tests/results/xunit.xml



deploy_to_prod:
  only:
    - main
  stage: deploy
  before_script:
    - python3 -m pip install -r requirements.txt
  script:
    - echo "Deploy to prod fabric"
    - ansible-playbook -i ansible-nxos/prod.yml ansible-nxos/vxlan.yml

pyats_aetest_test_prod:
  only:
    - main
  stage: test
  before_script:
    - python3 -m pip install -r requirements.txt
  script:
    - echo "Test prod fabric"
    - pyats run job tests/pyats_easypy.py --testbed-file tests/prod-testbed.yaml --archive-dir=./tests/results --xunit=./tests/results --no-archive-subdir --no-mail
  artifacts:
    when: always
    paths:
      - tests/results/*.zip
      - tests/results/report.html
    reports:
      junit: tests/results/xunit.xml

pyats_robot_test_prod:
  only:
    - main
  stage: test
  before_script:
    - python3 -m pip install -r requirements.txt
  script:
    - echo "Test prod fabric"
    - pyats run robot tests/pyats.robot --testbed-file tests/prod-testbed.yaml --archive-dir=./tests/results --xunit=./tests/results --no-archive-subdir --no-mail
  artifacts:
    when: always
    paths:
      - tests/results/*.zip
      - tests/results/report.html
    reports:
      junit: tests/results/xunit.xml

Step 7 - Add a New L2 VNI to Leaf Role Vars

The below usage of the cat command is a quick shortcut to add another L2VNI to your networks data list. Since you have done the execution manually in the lab to learn or expand on using these Devops tools for networking automation, this update is to provide a more realistic example where you want to make and test a change to your staging fabric. By introducing the pipeline above, once the merge request is opened the pipeline will execute which will deploy and test the change in your staging fabric. If the pipeline suceeds and the change is merged to your main branch, the pipeline will run again to deploy and test the change in your prod fabric.

cat <<EOF >> /home/pod14/workspace/nxapilab/ansible-nxos/group_vars/leafs.yml
  - vrf_name: *refvrf_ansiblevrf
    vlan_name: AnsibleNet3
    vlan_id: 103
    vni_id: 10103
    addr: 192.168.103.1
    mask: 24
    mcast_grp: 239.1.1.3
EOF

Step 8 - Check Git Status

With the creation of the GitLab CI file and the update to the leaf roles variables file, issue a git status to view your local pending changes. Notice with this command, you can see files that are already tracked by git show modified, i.e. ansible-nxos/roles/leaf/vars/main.yml whereas new files are not tracked and need to be added like you did in the previous section.

git status

  On branch main
  Your branch is up to date with 'origin/main'.

  Changes not staged for commit:
    (use "git add ..." to update what will be committed)
    (use "git restore ..." to discard changes in working directory)
          modified:   ansible-nxos/group_vars/leafs.yml

  Untracked files:
    (use "git add ..." to include in what will be committed)
          .gitlab-ci.yml
          requirements.txt

  no changes added to commit (use "git add" and/or "git commit -a")

Step 9 - Git Add GitLab CI File

Add the .gitlab-ci.yml file to your Git repo.

git add .

Step 10 - Check Git Status Again

git status

  On branch main
  Your branch is up to date with 'origin/main'.

  Changes to be committed:
    (use "git restore --staged ..." to unstage)
          new file:   .gitlab-ci.yml
          modified:   ansible-nxos/group_vars/leafs.yml
          new file:   requirements.txt

Step 11 - Git Commit

Commit the changes with a descriptive update message.

git commit -am "add gitlab ci & add new network to fabric"

  [main e7f5459] add gitlab ci & add new network to fabric
    3 files changed, 171 insertions(+)
    create mode 100644 .gitlab-ci.yml
    create mode 100644 requirements.txt

Step 12 - Git Push

Push the Git commit to the new branch you created at the start of this section. This creates the staging branch in your Git repo on the GitLab instance.

The difference now between the staging branch and the main branch is the leaf roles variable modification and the addition of the GitLab CI file.

git push --set-upstream origin staging

  Enumerating objects: 11, done.
  Counting objects: 100% (11/11), done.
  Delta compression using up to 8 threads
  Compressing objects: 100% (7/7), done.
  Writing objects: 100% (7/7), 1.34 KiB | 1.34 MiB/s, done.
  Total 7 (delta 2), reused 0 (delta 0), pack-reused 0
  remote:
  remote: To create a merge request for staging, visit:
  remote:   http://10.15.0.159/Pod01_2025_01/LTRDCN-3903/-/merge_requests/new?merge_request%5Bsource_branch%5D=staging
  remote:
  To 10.15.0.159:Pod01_2025_01/LTRDCN-3903.git
  * [new branch]      staging -> staging
  Branch 'staging' set up to track remote branch 'staging' from 'origin'.

Step 13 - Switch GitLab View to Staging Branch

Return to GitLab. Click main to get a dropdown list of avaialble branches. Select the staging branch. If your view does not match the view in the screenshot below, then please refresh the webpage.

Step 14 - Review Staging Branch

Finally, review the Last commit column and notice it should match your commit message. Additionally, notice the .gitlab-ci.yml file now present.

Continue to the next section to put your network automation and CI/CD pipeline into action against your staging and prod fabrics!
